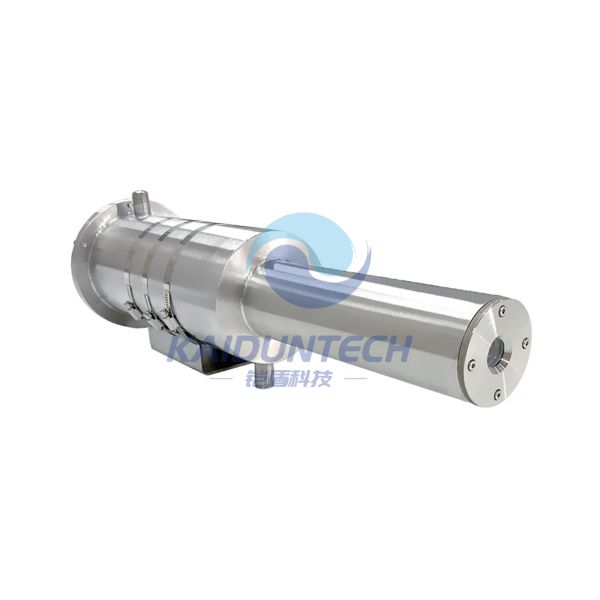

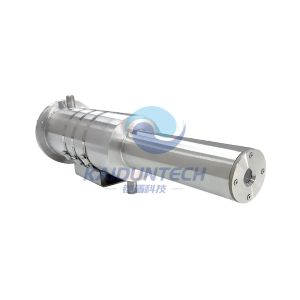

    Fully Enclosed Furnace Chamber Endoscopic High-temperature Resistant Air-water Cooled Camera

    Ask Lasest Price
    Brand Name : KAIDUN
    Model Number : KDG010
    Payment Terms : T/T
    Supply Ability : 5000 units/year
    Delivery Time : 5-8 week
    • Product Details
    • Company Profile

    Fully Enclosed Furnace Chamber Endoscopic High-temperature Resistant Air-water Cooled Camera

    Fully Enclosed Furnace Chamber Endoscopic High-temperature Resistant Air-water Cooled Camera
    Key Features
    • The KDG010 is a High-temperature Camera Equipped with an Air-cooled housing
    • The camera lens of this system equipment can be directly extended to the observation hole on the furnace wall to monitor the operation of workpieces inside the furnace, as well as the conditions of materials, flame shape,and other related situations.
    Application Environment

    Metallurgical & Steel Industry


    Power Generation Industry


    Petrochemical & Chemical Industry


    Glass & Ceramic Industry


    Waste Incineration & Environmental Protection

    High-temperature resistant cameras are engineered to operate reliably in extreme thermal environments (typically -40°C to 1200°C, depending on models) where standard cameras fail due to overheating, component degradation, or structural damage.
    Main Features
    Material304 Stainless Steel + Local High-temperature Resistant Pot
    Operating ConditionsTemperature inside the furnace ≤ 600℃
    Dust Concentration in
    the Operating Environment
    ≤ 200 mg/m3 (based on cement dust as the standard)
    VideoIP
    Visible Resolution2MP/4MP etc
    Visible Focal Length4-20mm High-Temperature Resistant Manual Lens
    Cooling MethodTwo layers of water channels +one layer of air channels, with combined air-water cooling for temperature reduction
    Comperssed Air Pressure0.2~0.4Mpa
    Compressed Air Flow Rate0.3~0.7m³/min(0.7 m³/min at an air pressure of 0.4 MPa)
    General FunctionAnti-flicker, Dual Stream, Rotation,Heartbeat, Mirroring, Password-protected Video Masking,Watermarking Technology,IP Address Filtering
    Intelligent AlarmCross-line Detection; Region Intrusion Detection;Motion Detection; Dynamic Analysis Tampering Alarm;Network Cable Disconnection;IP Address Conflict; Unauthorized Access
    VoltageDC12V/POE optional
    Dimensions620*183*170mm
    Weight≤12kg
    MountingWall-mounted Bracket for Heavy-duty PTZ Camera , Pole Installation, etc.
    Dimensions
    Fully Enclosed Furnace Chamber Endoscopic High-temperature Resistant Air-water Cooled Camera
